CARDIOLOGY - ECG LIBRARY
Case 32

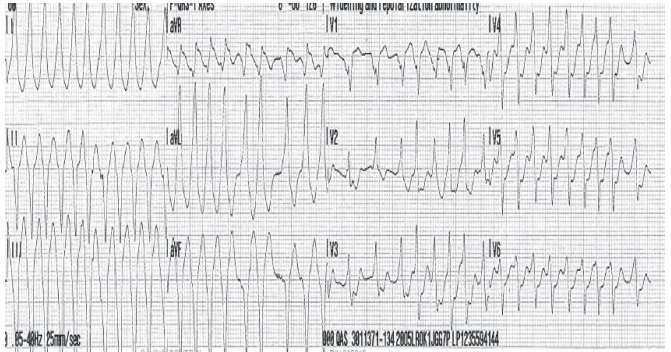

50 F, Palpitations 30 mins. No PMHx/meds. Dx + supporting features
Expected Response
Suggests rapid AF with likely accessory pathway, eg WPW
Irregularly irregular broad complex (but will aceept narrow – it’s borderline)
tachycardia (QRS widened, or borderline (approx 100ms)
Rate up to 300 bpm in parts
Delta waves visible in lead V3
Irregularly irregular broad complex (but will aceept narrow – it’s borderline)
tachycardia (QRS widened, or borderline (approx 100ms)
Rate up to 300 bpm in parts
Delta waves visible in lead V3
